TPKN43ZTR NS740

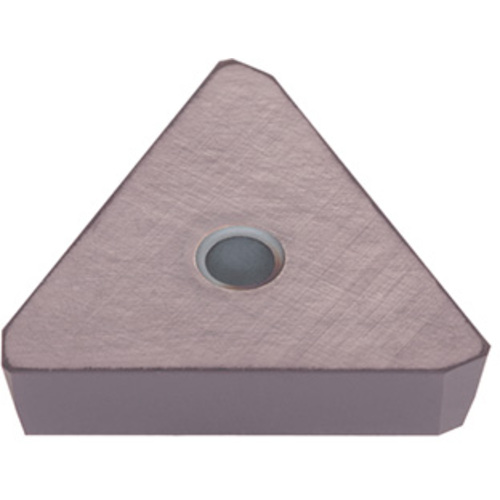

Milling Insert; TPKN43ZTR NS740 ISO MILL NS740 × 0.187″ Thickness ; Cermet

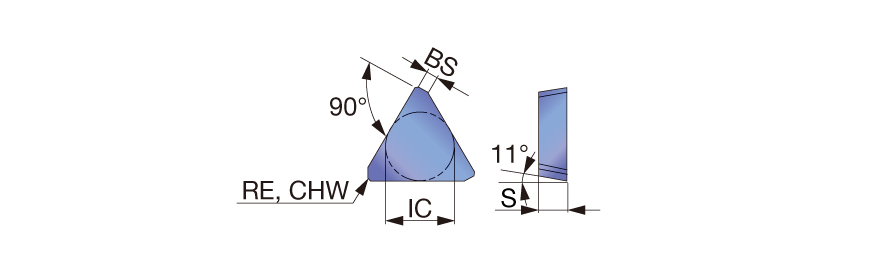

| Applicable Material | | Steel | Stainless Steel | | Grade | NS740 |
| Application | | Shoulder Milling | | Corner Chamfer Width (CHW) | 0.02″ |
| Depth of Cut Maximum (APMX) | 0.394″ | Cutting Edge Material | Cermet |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 3 |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Flat-top triangle insert with 11deg relief angle for shoulder milling | Country of Origin | Japan |
Shipping Info
Package Weight
0.019
