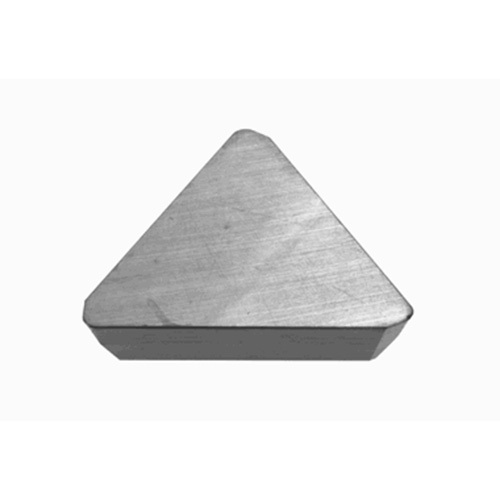

TEEN32ZTR NS740
Milling Insert; TEEN32ZTR NS740 ISO MILL NS740 × 1/8″ Thickness ; Cermet

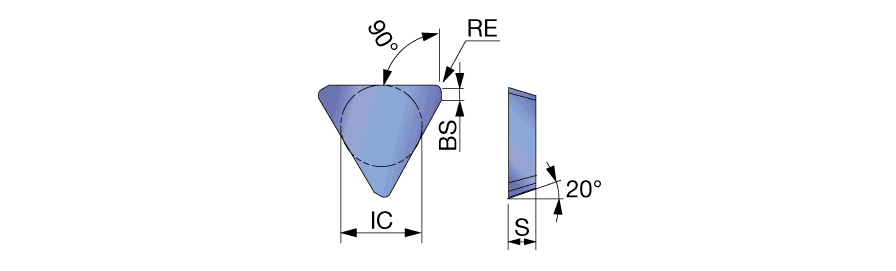

| Applicable Material | | Steel | Stainless Steel | | Coating | Uncoated |
| Application | | Shoulder Milling | | Grade | NS740 |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Cermet |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 3/8″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.039″ | Body Material | Carbide |
Product Features
| Family Description | Flat-top triangle insert with 20deg relief angle for shoulder milling | Country of Origin | Japan |
Shipping Info
Package Weight
0.007
