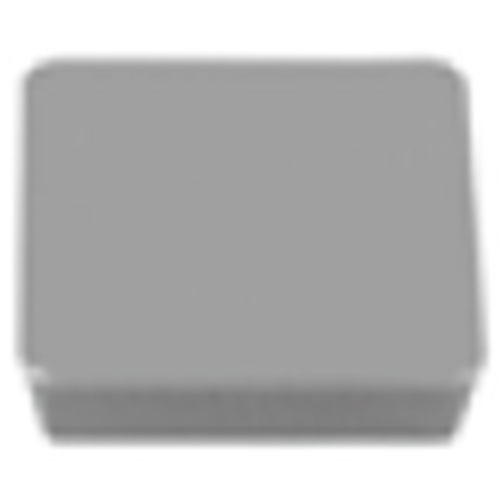

SPCN42STR NS740
Milling Insert; SPCN42STR NS740 ISO MILL NS740 × 1/2″ Width × 1/8″ Thickness ; Cermet
| Applicable Material | | Steel | Stainless Steel | | Coating | Uncoated |
| Application | | Face Milling | | Grade | NS740 |
| Insert Length (INSL) | 1/2″ | Cutting Edge Material | Cermet |
| Depth of Cut Maximum (APMX) | 0.276″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 1/2″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Thickness (S) | 1/8″ | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.055″ |
Product Features
| Family Description | Flat-top square insert with 11deg relief angle for 75 deg corner angle | Country of Origin | Japan |
Shipping Info
Package Weight
0.01
