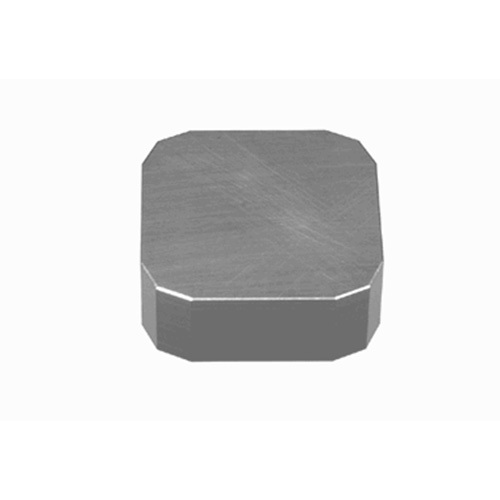

SNCN43ZTN NS740
Milling Insert; SNCN43ZTN NS740 ISO MILL NS740 × 1/2″ Width × 0.187″ Thickness ; Cermet
| Applicable Material | | Steel | Stainless Steel | | Coating | Uncoated |
| Application | | Face Milling | | Grade | NS740 |

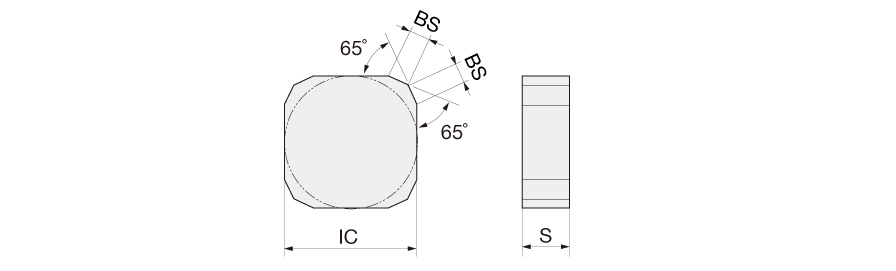

| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Edge Material | Cermet |
| Insert Width (W1) | 1/2″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.079″ | Body Material | Carbide |
Product Features
| Family Description | Negative square insert for steel and cast iron machining with chamfered corner | Country of Origin | Japan |
Shipping Info
Package Weight
0.014
