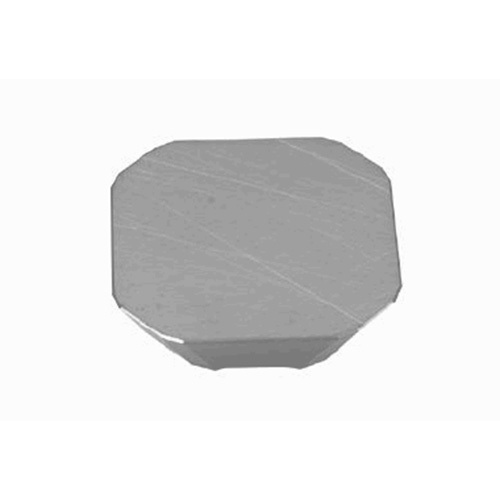

SEKN53ZTN NS740
Milling Insert; SEKN1504AGTN NS740 ISO NS740 × 5/8″ Width × 0.187″ Thickness ; Cermet
| Applicable Material | | Steel | Stainless Steel | | Coating | Uncoated |
| Application | | Face Milling | | Grade | NS740 |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Edge Material | Cermet |
| Insert Width (W1) | 5/8″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 5/8″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.063″ | Body Material | Carbide |
Product Features

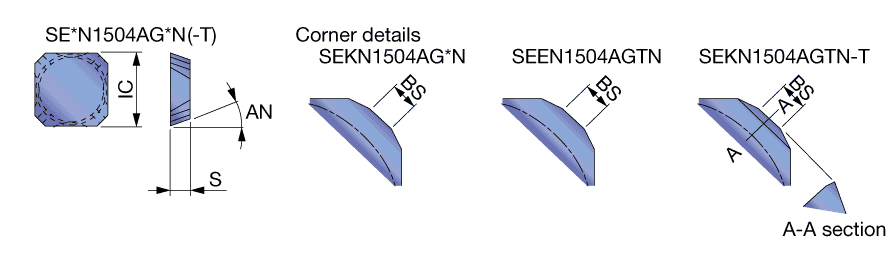

| Family Description | Flat-top square insert with 20deg relief angle, for large depth of cut | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.165
