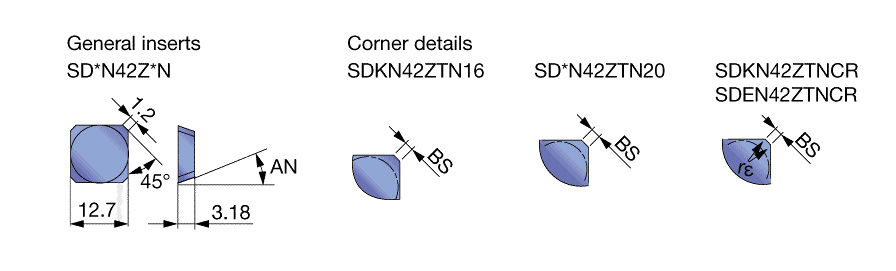

SDKN42ZTN NS740
Milling Insert; SDKN42ZTN NS740 ISO MILL NS740 × 1/2″ Width × 1/8″ Thickness ; Cermet
| Applicable Material | | Steel | Stainless Steel | | Coating | Uncoated |
| Application | | Face Milling | | Grade | NS740 |
| Depth of Cut Maximum (APMX) | 4 mm | Cutting Edge Material | Cermet |
| Insert Width (W1) | 12.7 mm | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 12.7 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 1.2 mm | Body Material | Carbide |
Product Features
| Family Description | Flat-top square insert with 15deg relief angle for 45 deg corner angle | Country of Origin | Japan |
Shipping Info
Package Weight
0.009
