AECW16T3PESR NS740

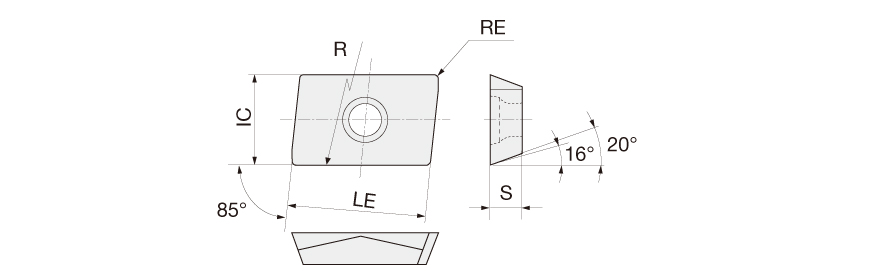

Milling Insert; AECW16T3PESR NS740 ISO NS740 × 12 mm Width × 3.97 mm Thickness ; Cermet
| Applicable Material | | Steel | Stainless Steel | | Grade | NS740 |
| Application | | Shoulder Milling | | Cutting Edge Material | Cermet |
| Corner Radius (RE) | 0.4 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 14 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 12 mm | Cutting Edge Effective Length (LE) | 16 mm |
| Inscribed Circle Diameter (IC) | 12 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.97 mm | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | High precision insert for shoulder milling | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.108
