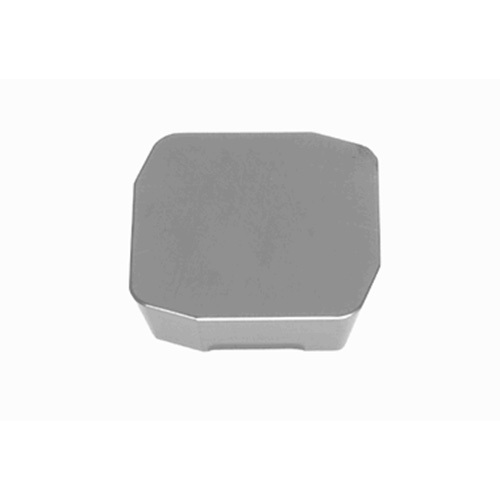

SDEN1504ZDSR AH120
Milling Insert; SDEN1504ZDSR AH120 ISO AH120 × 5/8″ Width × 0.187″ Thickness ; Carbide ; TiAlN

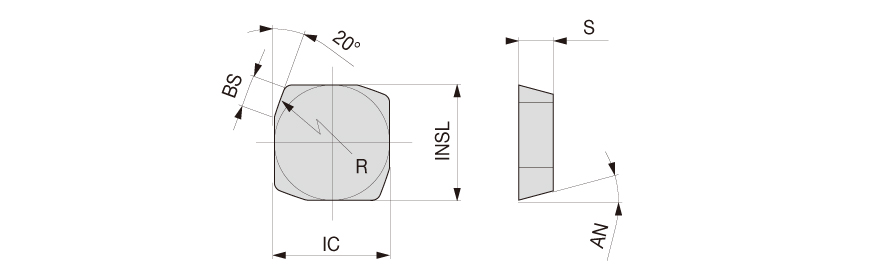

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Insert Length (INSL) | 5/8″ | Grade | AH120 |
| Depth of Cut Maximum (APMX) | 0.118″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 5/8″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 5/8″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.118″ | Body Material | Carbide |
Product Features
| Family Description | Square insert for super high feed face milling | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.333
