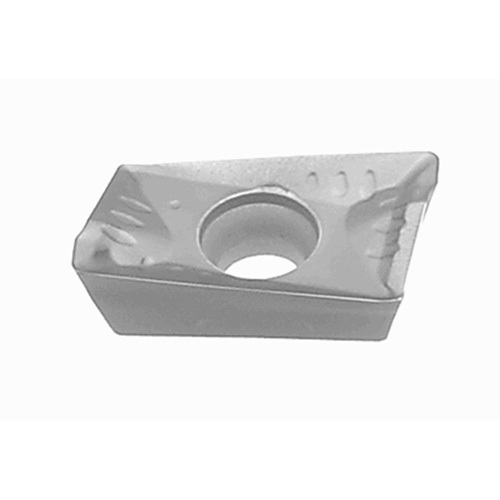

ASMT170508PDPR-MS AH140
Milling Insert; ASMT170508PDPRMS AH140 AH140 × 0.386″ Width × 0.22″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | | Coating | TiAlN |
| Application | | Shoulder Milling | | Grade | AH140 |

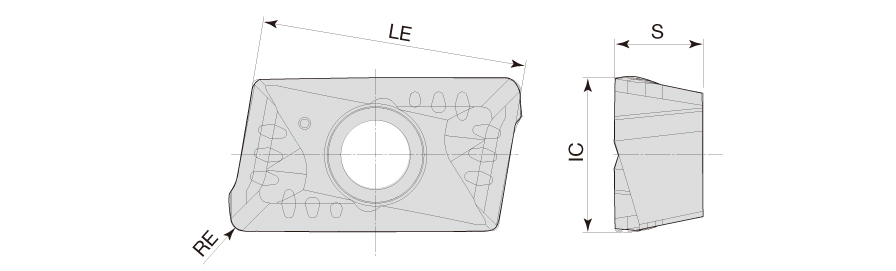

| Insert Length (INSL) | 0.728″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0314″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.63″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.386″ | Cutting Edge Effective Length (LE) | 0.665″ |
| Inscribed Circle Diameter (IC) | 0.386″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.22″ | Body Material | Carbide |
Product Features
| Family Description | With MS chipbreaker, suitable for precision milling of stainless steel | Country of Origin | Japan |
Shipping Info
Package Weight
0.021
