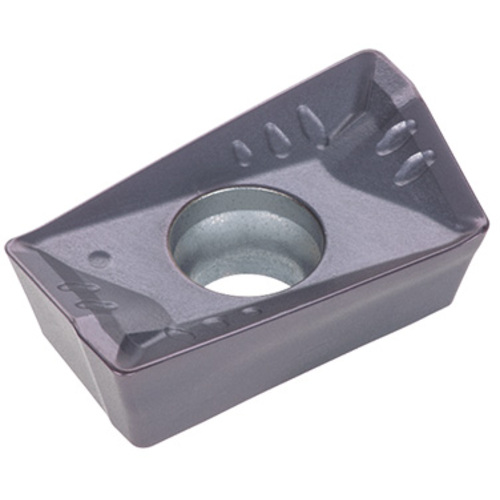

ASMT11T304PDPR-MS AH140
Milling Insert; ASMT11T304PDPRMS AH140 AH140 × 0.264″ Width × 0.146″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | | Coating | TiAlN |
| Application | | Shoulder Milling | | Grade | AH140 |

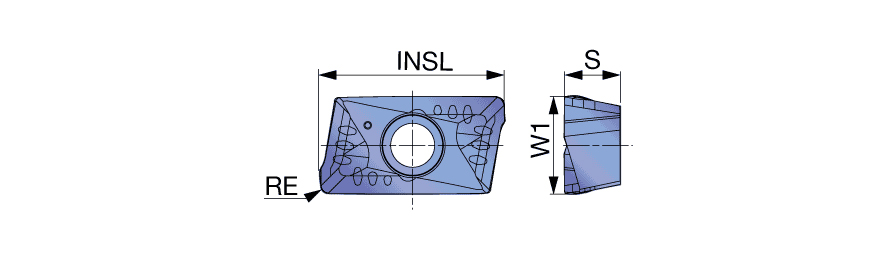

| Insert Length (INSL) | 0.484″ | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.417″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.264″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.264″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.146″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.055″ | Body Material | Carbide |
Product Features
| Family Description | Suitable for stainless steel milling with low cutting force. | Country of Origin | Japan |
Shipping Info
Package Weight
0.008
