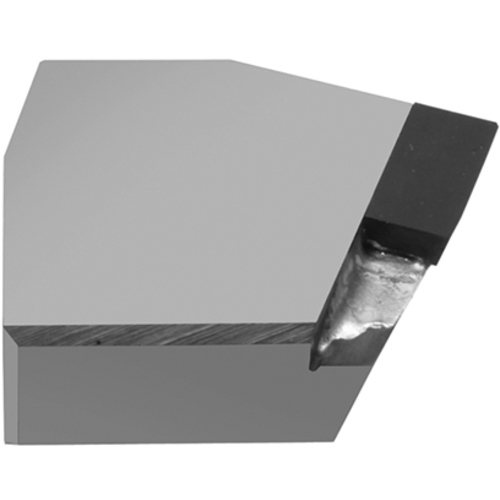

YDEN2405PDFR-WD DX140
Milling Insert; YDEN2405PDFR-WD DX140 DX140 × 12.4 mm Width × 5.6 mm Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | | Shoulder Milling | | Grade | DX140 |

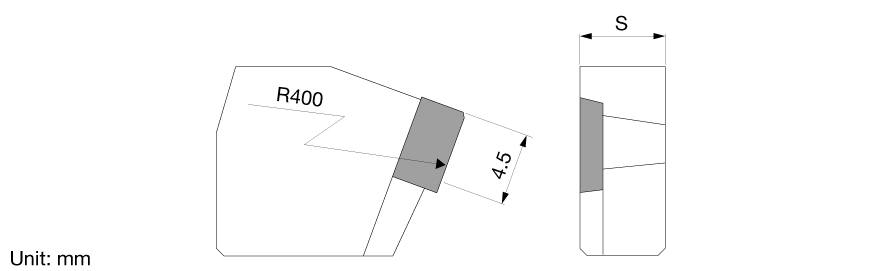

| Insert Length (INSL) | 16.18 mm | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 0.5 mm | Tool Type | Mill Ultra hard Inserts |
| Insert Width (W1) | 12.4 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 5.6 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 4.5 mm | Body Material | Carbide |
Product Features
| Family Description | PCD wiper insert for DPD24 milling cutter | Country of Origin | JAPAN |
| Remarks | Our company regrinds this insert. |
Shipping Info
Package Weight
0.049
