YDEN2405PDFR-D DX140

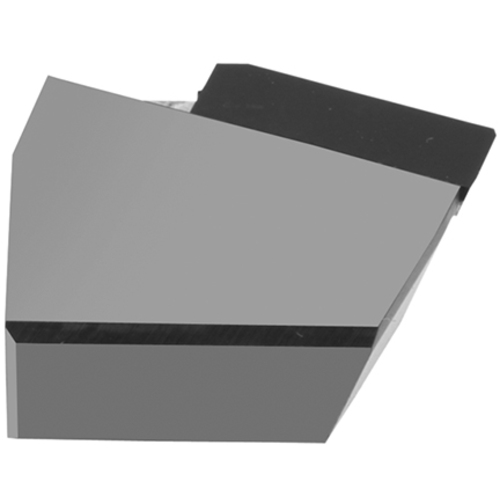

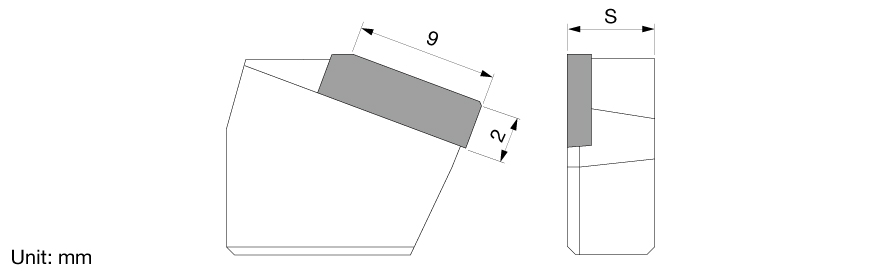

Milling Insert; YDEN2405PDFR-D DX140 DX140 × 12.4 mm Width × 5.6 mm Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DX140 |
| Application | | Shoulder Milling | | Corner Chamfer Width (CHW) | 0.29 mm |
| Insert Length (INSL) | 16.24 mm | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 7 mm | Tool Type | Mill Ultra hard Inserts |
| Insert Width (W1) | 12.4 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 5.6 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 1 mm | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | PCD insert for DPD24 milling cutter | Country of Origin | JAPAN |
| Remarks | Our company regrinds this insert. |
Shipping Info
Package Weight
0.051
