ADMT130308PR-MJ AH120
Milling Insert; ADMT130308PR-MJ AH120 AH120 × 7.94 mm Width × 3.18 mm Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

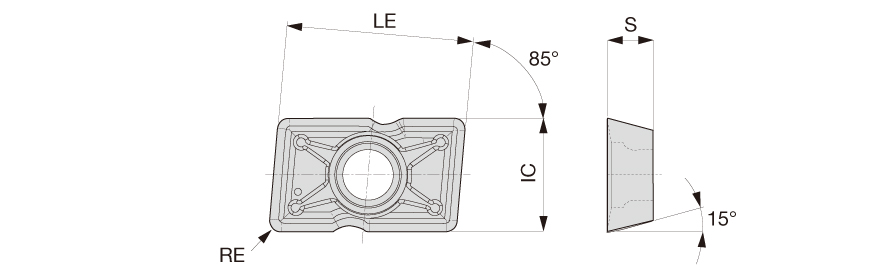

| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 6.94 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 7.94 mm | Cutting Edge Effective Length (LE) | 13.1 mm |
| Inscribed Circle Diameter (IC) | 7.94 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | For end cutting edge | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.101
