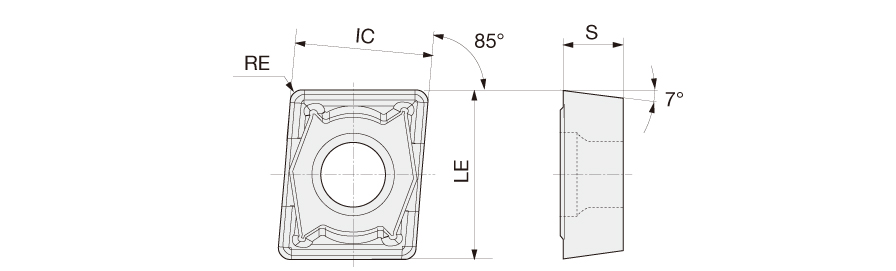

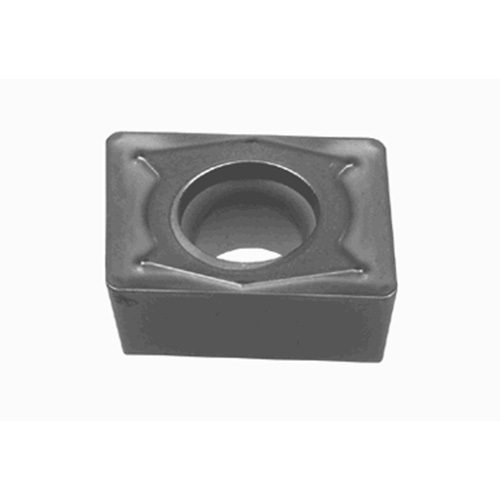

ACMT060308PR-MJ AH120
Milling Insert; ACMT060308PR-MJ AH120 AH120 × 0.236″ Width × 1/8″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0314″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.273″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.236″ | Cutting Edge Effective Length (LE) | 0.313″ |
| Inscribed Circle Diameter (IC) | 0.236″ | Measurement Type | Inch |
| Insert Thickness (S) | 1/8″ | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | For end cutting edge | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.062
