| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0118 in/tooth |
| Application | | Multi Functional tools | Shoulder Milling | | Cutting Edge Material | Carbide |

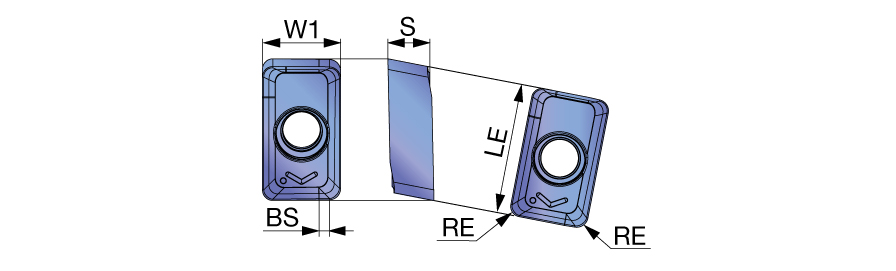

| Corner Radius (RE) | 0.0315″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.433″ | Minimum Feed per Tooth (fz(min)) | 0.0014 in/tooth |
| Insert Width (W1) | 0.28″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.165″ | Cutting Edge Effective Length (LE) | 0.48″ |
| Wiper Edge Length (BS) | 0.031″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 |

Product Features

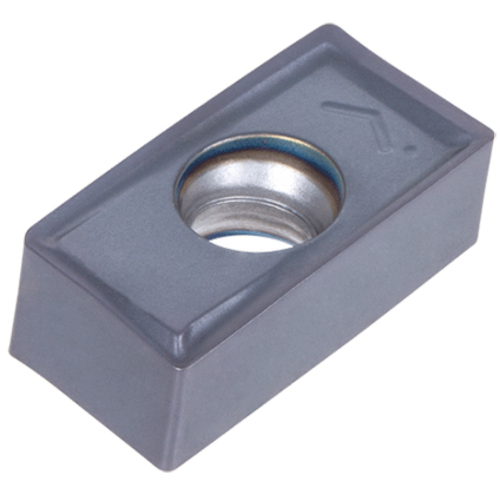

| Family Description | Double-sided insert with four total cutting edges and MM chipbreaker for general purpose | Country of Origin | Japan |
