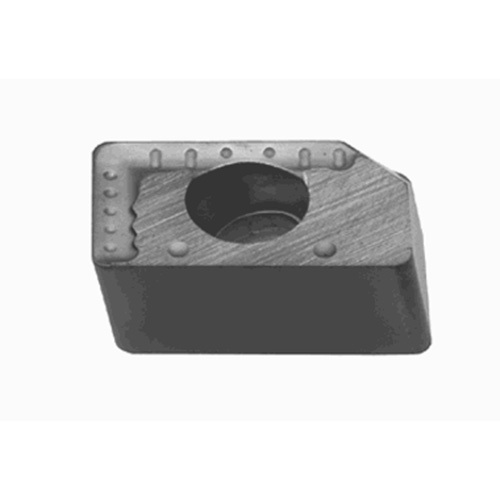

XXMU10H308PR-MJ AH120
Milling Insert; XXMU10H308PRMJ AH120 AH120 × 0.268″ Width × 0.138″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Shoulder Milling | | Grade | AH120 |

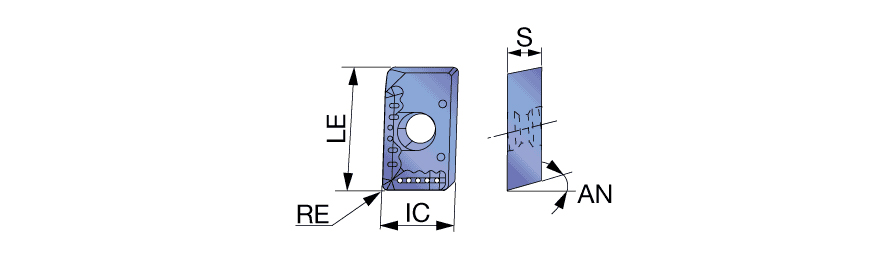

| Insert Length (INSL) | 10.6 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 9 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 6.8 mm | Cutting Edge Effective Length (LE) | 10.6 mm |
| Inscribed Circle Diameter (IC) | 6.8 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.5 mm | Body Material | Carbide |
Product Features
| Family Description | Unique shape insert for both central and peripheral edge | Country of Origin | Japan |
Shipping Info
Package Weight
0.008
