XXMU08T204PR-MJ AH120
Milling Insert; XXMU08T204PRMJ AH120 AH120 × 0.22″ Width × 0.109″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Shoulder Milling | | Grade | AH120 |

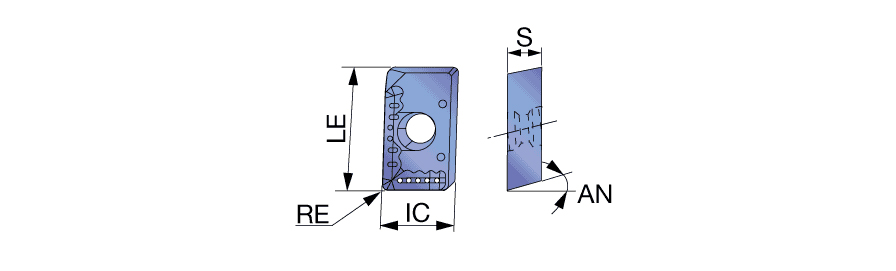

| Insert Length (INSL) | 0.323″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.276″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.22″ | Cutting Edge Effective Length (LE) | 0.323″ |
| Inscribed Circle Diameter (IC) | 0.22″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.109″ | Body Material | Carbide |
Product Features
| Family Description | Unique shape insert for both central and peripheral edge | Country of Origin | Japan |
Shipping Info
Package Weight
0.006
