DPCW11T3ZFR AH740

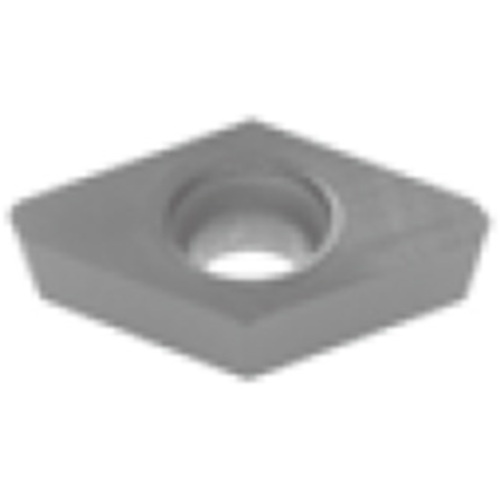

Milling Insert; DPCW11T3ZFR AH740 FLASH AH740 × 0.374″ Width × 0.156″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | | Coating | TiAlN |
| Application | | Profile Milling | | Grade | AH740 |

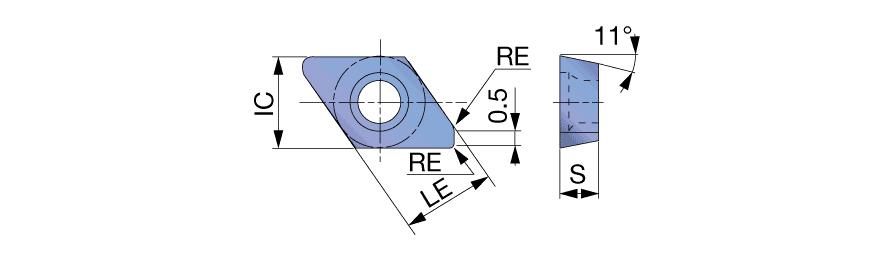

| Corner Radius (RE) | 0.0393″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.02″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.374″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Edge Effective Length (LE) | 3/8″ |
| Insert Thickness (S) | 0.156″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.02″ | Body Material | Carbide |
Product Features
| Family Description | Precision ground insert for finishing with plunging tool | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.117
