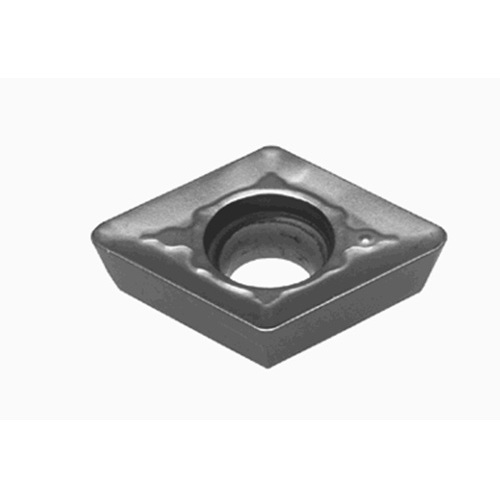

GDMT10H3PDPR-MJ UX30
Milling Insert; GDMT10H3PDPR-MJ UX30 UX30 × 0.394″ Width × 0.138″ Thickness ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Coating | Uncoated |
| Application | | Shoulder Milling | | Grade | UX30 |

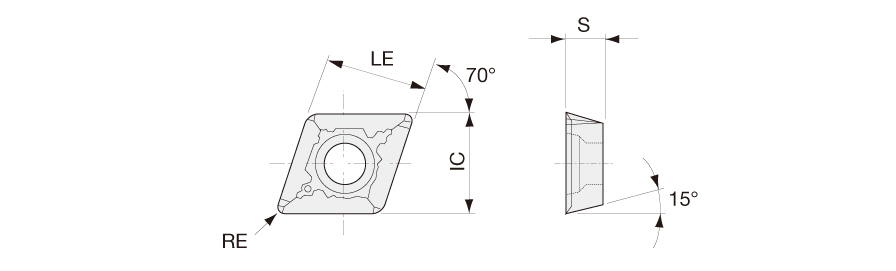

| Corner Radius (RE) | 0.0314″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.354″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.394″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 0.394″ | Cutting Edge Effective Length (LE) | 0.394″ |
| Insert Thickness (S) | 0.138″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.016″ | Body Material | Carbide |
Product Features
| Family Description | Multi purpose insert with MJ chipbreaker | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.090
