ZNCA1603FN TH10

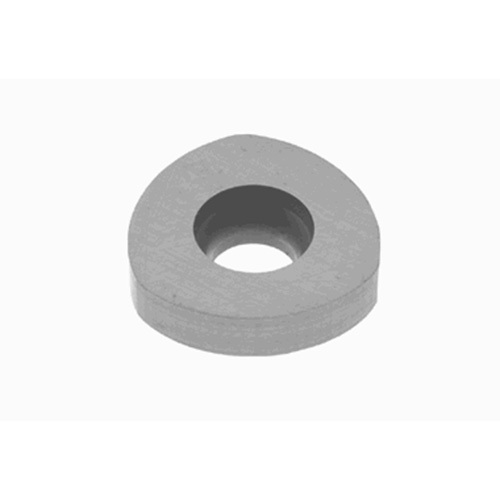

Milling Insert; ZNCA1603FN TH10 FLASH BN TH10 × 3.5 mm Thickness ; Carbide
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Profile Milling | | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 8 mm | Number of Cutting Edges | 3 |

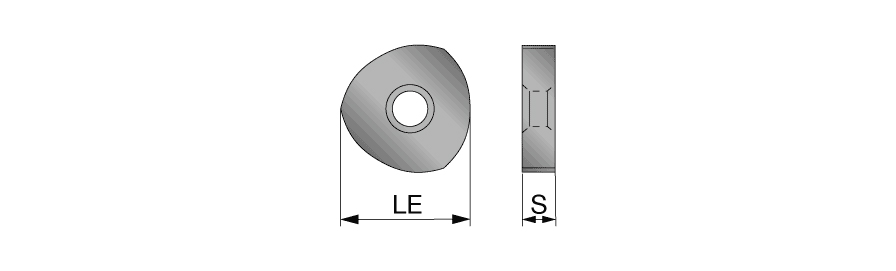

| Depth of Cut Maximum (APMX) | 8 mm | Cutting Edge Effective Length (LE) | 12.77 mm |
| Insert Thickness (S) | 3.5 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | TH10 |
Product Features
| Family Description | Unique shape insert for roughing ball-nose endmill | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.143
