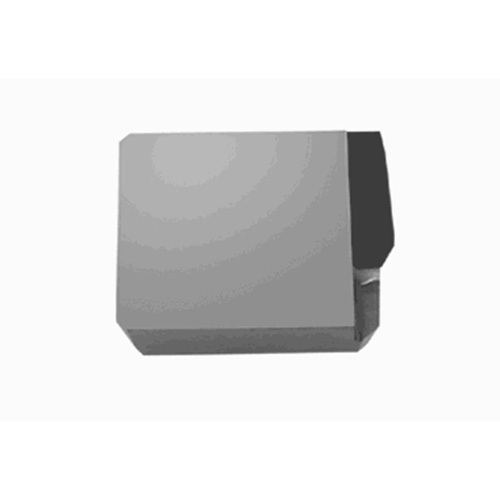

SECX1203ZEFR-WD DX140
Milling Insert; WECN42ZFR-DIA DX140 DX140 × 0.509″ Width × 1/8″ Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DX140 |
| Application | | Face Milling | | Cutting Edge Material | PCD |

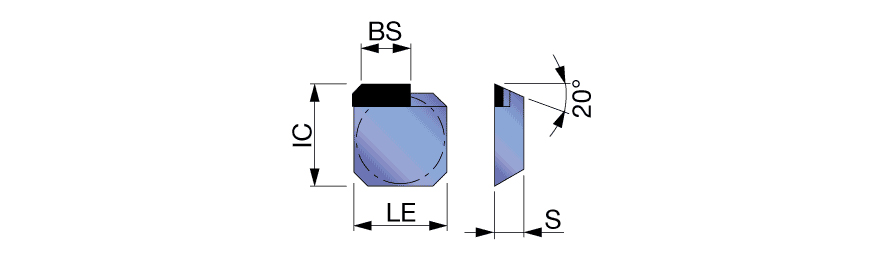

| Depth of Cut Maximum (APMX) | 0.02″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.509″ | Number of Cutting Edges | 1 |
| Inscribed Circle Diameter (IC) | 0.509″ | Cutting Edge Effective Length (LE) | 0.488″ |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.217″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | PCD wiper insert for THE4000 & QHE4000 milling cutter | Country of Origin | JAPAN |
| Remarks | T DIA is trade name for Tungaloy's PCD grade. Available in one corner type. |
Shipping Info
Package Weight
0.033
