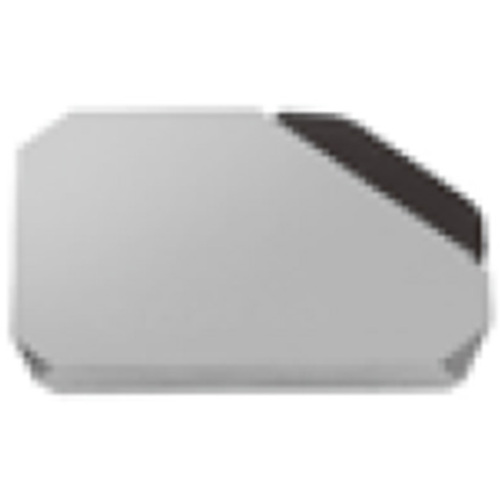

SDCX1203AEFR-WD DX140
Milling Insert; WDCN42ZFR-DIA DX140 DX140 × 0.616″ Width × 1/8″ Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | | Face Milling | | Grade | DX140 |

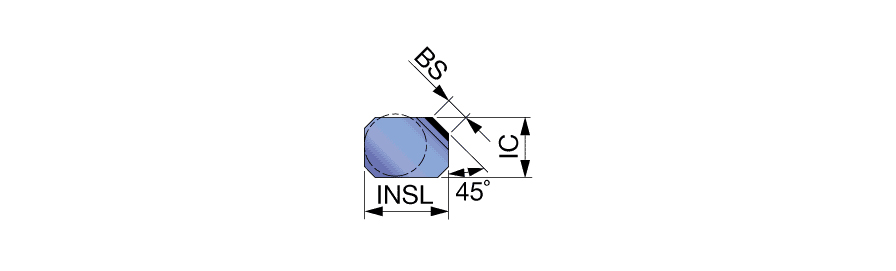

| Insert Length (INSL) | 0.616″ | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 0.02″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.616″ | Number of Cutting Edges | 1 |
| Inscribed Circle Diameter (IC) | 0.48″ | Measurement Type | Inch |
| Insert Thickness (S) | 1/8″ | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.193″ |
Product Features
| Family Description | PCD wiper insert for TMD4000IA, EMD440RI-S32 and T/EGD4400-A milling cutter | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.037
