TPMA432TNW1 TH10

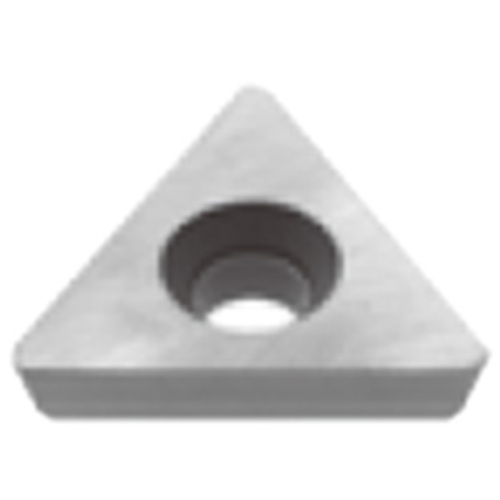

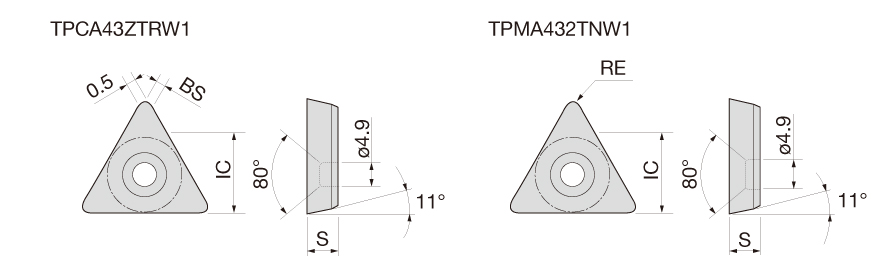

Milling Insert; TPMA432TNW1 TH10 TH10 × 4.76 mm Thickness ; Carbide
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | TH10 |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 19 mm | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Flat-top triangle insert with 11 deg relief angle | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.287
