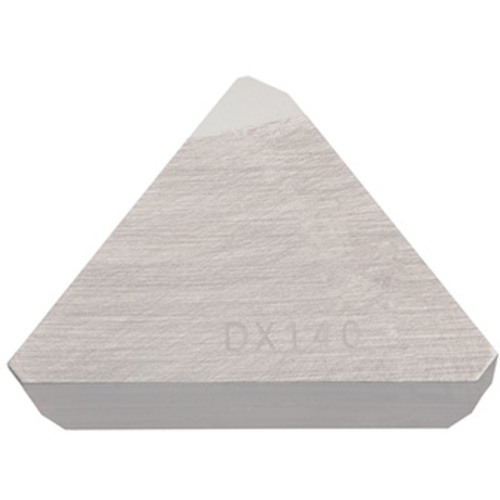

TECN1603PEFR-D DX140
Milling Insert; TECN32ZFR-DIA DX140 DX140 × 1/8″ Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DX140 |
| Application | | Shoulder Milling | | Corner Chamfer Width (CHW) | 0.026″ |
| Depth of Cut Maximum (APMX) | 0.098″ | Cutting Edge Material | PCD |

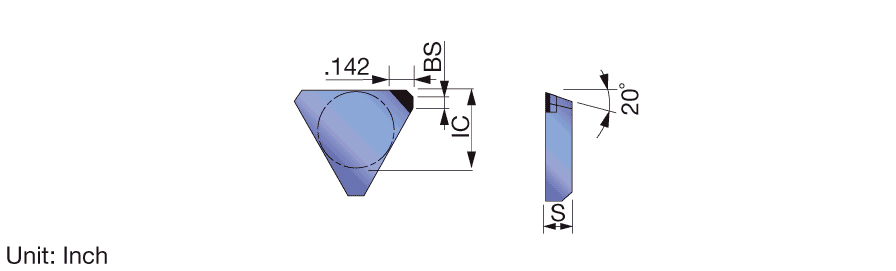

| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/8″ | Number of Cutting Edges | 3 |
| Wiper Edge Length (BS) | 0.054″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Positive 20 deg relief ang., C class, triangular PCD inserts for TSE3000R and ESE3000R milling cutters | Country of Origin | JAPAN |
| Remarks | T DIA is trade name for Tungaloy's PCD grade. Available in one corner type. |
Shipping Info
Package Weight
0.031
