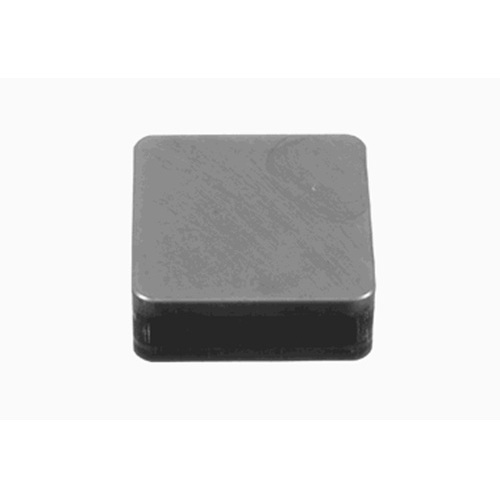

SNMN433TN UX30
Milling Insert; SNMN 433 TN UX30 ISO UX30 × 1/2″ Width × 0.187″ Thickness ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Grade | UX30 |

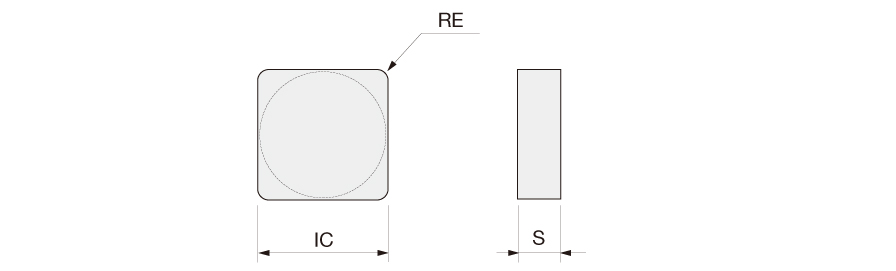

| Corner Radius (RE) | 0.0472″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.236″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 1/2″ | Number of Cutting Edges | 8 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.187″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Negative square insert for steel and cast iron machining with round corner | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.240
