SFCN53ZFN-DIA DX140

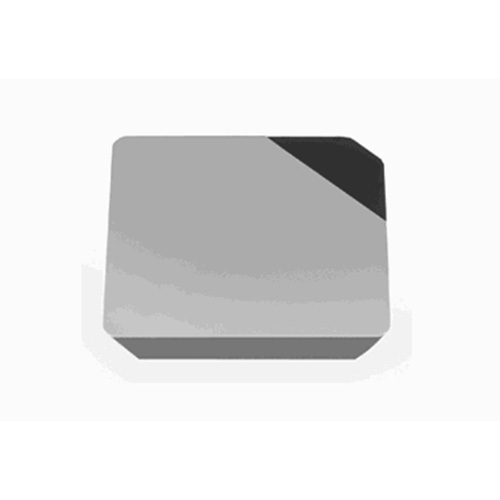

Milling Insert; SFCN 53 ZFN-DIA DX140 DX140 × 15.875 mm Width × 4.76 mm Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | | Face Milling | | Grade | DX140 |

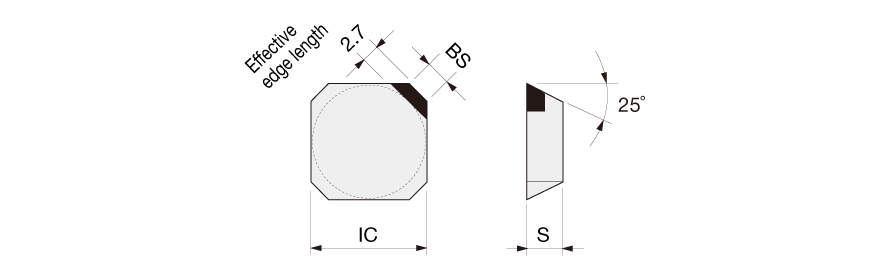

| Depth of Cut Maximum (APMX) | 2 mm | Cutting Edge Material | PCD |
| Insert Width (W1) | 15.875 mm | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 15.875 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 2 mm | Body Material | Carbide |
Product Features
| Family Description | Positive 25 deg relief angle, C class, square PCD deburring wiper insert for THF4400IA / 5400IA | Country of Origin | Japan |
Shipping Info
Package Weight
0.051
