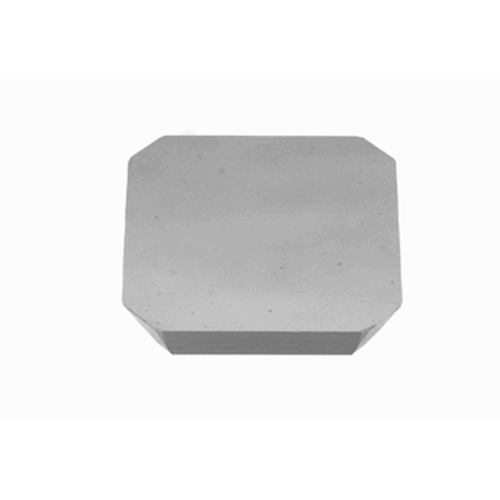

SFCN53ZFN TH10

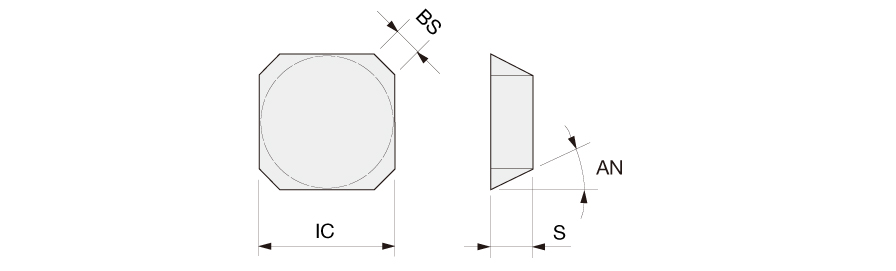

Milling Insert; SFCN53ZFN TH10 ISO MILL TH10 × 5/8″ Width × 0.187″ Thickness ; Carbide
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | Uncoated |
| Application | | Face Milling | | Grade | TH10 |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 5/8″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 5/8″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.079″ | Body Material | Carbide |
Product Features
| Family Description | Flat-top square insert with 25deg relief angle for aluminum machining | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.317
