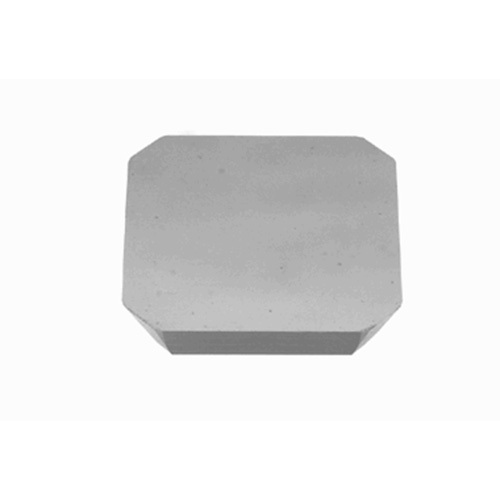

SFCN42ZFN TH10
Milling Insert; SFCN42ZFN TH10 ISO MILL TH10 × 1/2″ Width × 1/8″ Thickness ; Carbide
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | Uncoated |
| Application | | Face Milling | | Grade | TH10 |

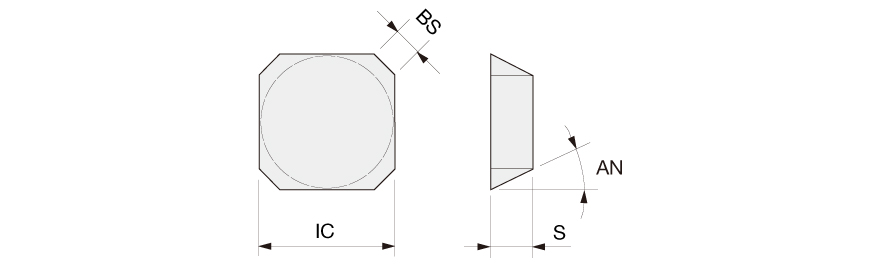

| Depth of Cut Maximum (APMX) | 0.157″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 1/2″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.079″ | Body Material | Carbide |
Product Features
| Family Description | Flat-top square insert with 25deg relief angle for alminum machining | Country of Origin | Japan |
Shipping Info
Package Weight
0.016
