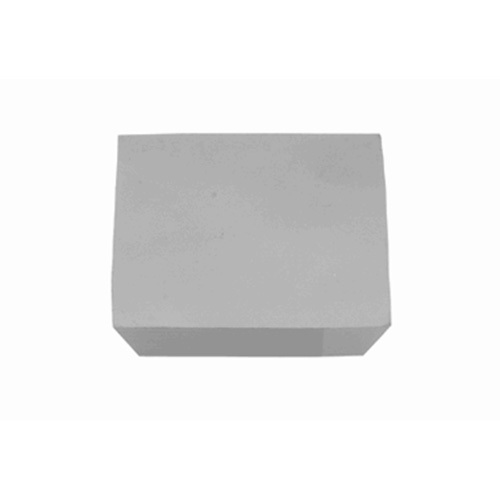

SEEN42ZFR TH10
Milling Insert; SEEN42ZFR TH10 ISO MILL TH10 × 1/2″ Width × 1/8″ Thickness ; Carbide
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | TH10 |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

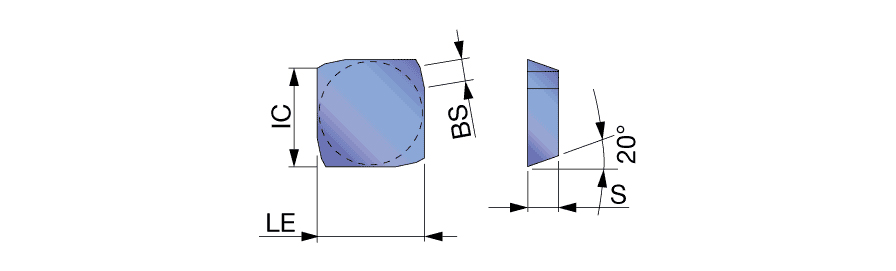

| Depth of Cut Maximum (APMX) | 0.236″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 1/2″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Edge Effective Length (LE) | 1/2″ |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.098″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Flat-top square insert with 20deg relief angle for aluminum machining | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.165
