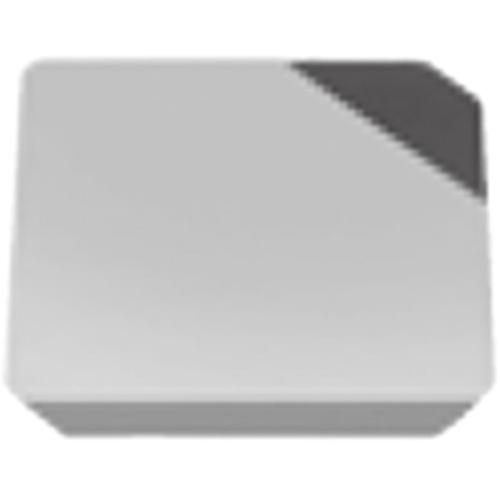

SDCN1203AEFN-D DX140
Milling Insert; SDCN42ZFN-DIA DX140 DX140 × 1/2″ Width × 1/8″ Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | | Face Milling | | Grade | DX140 |
| Depth of Cut Maximum (APMX) | 0.079″ | Cutting Edge Material | PCD |
| Insert Width (W1) | 1/2″ | Tool Type | Single sided Inserts |

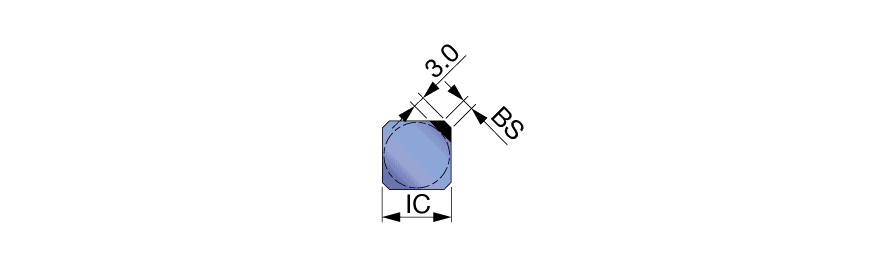

| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.047″ | Body Material | Carbide |
Product Features
| Family Description | Positive 15deg relief ang., C class, square PCD insert for TGD4400-A, TMD4400I, EGD4400, EMD4403RI-s32 and TFD4400-A | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.037
