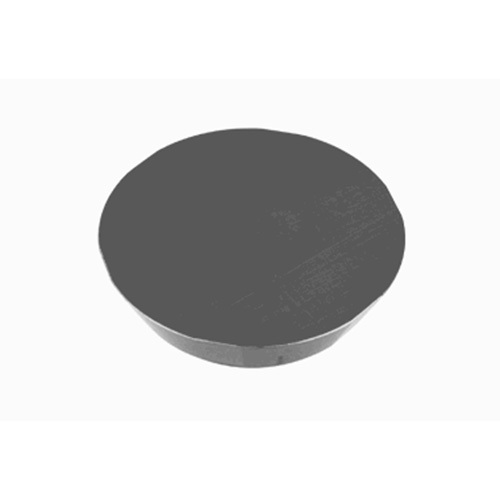

RFEN2004ZFTN UX30
Milling Insert; RFEN2004ZFTN UX30 ISO UX30 × 0.187″ Thickness ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Grade | UX30 |

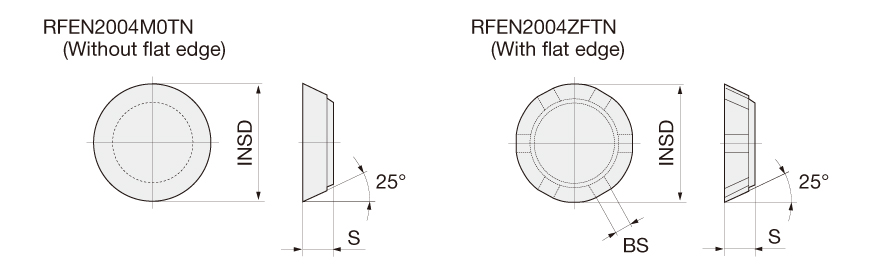

| Insert Length (INSL) | 0.787″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.118″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.787″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.11″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Flat-top button insert with 25 deg relief angle | Country of Origin | JAPAN |
| Remarks | RFEN2004M0TN type inserts should not be used for finishing requiring surface finish better than 12S. RFEN2004ZF*N type Inserts can be used for both finishing and roughing at depth of cut up to 3 mm. RFEN2004M0TN does not have flattened flanks. |
Shipping Info
Package Weight
0.384
