AEMW16T3PETR UX30

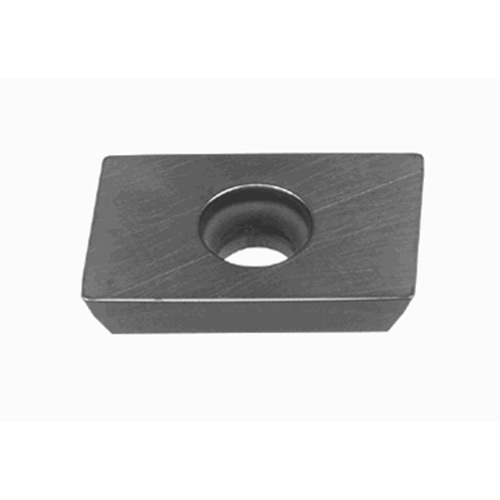

Milling Insert; AEMW16T3PETR UX30 ISO UX30 × 0.469″ Width × 0.156″ Thickness ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Grade | UX30 |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

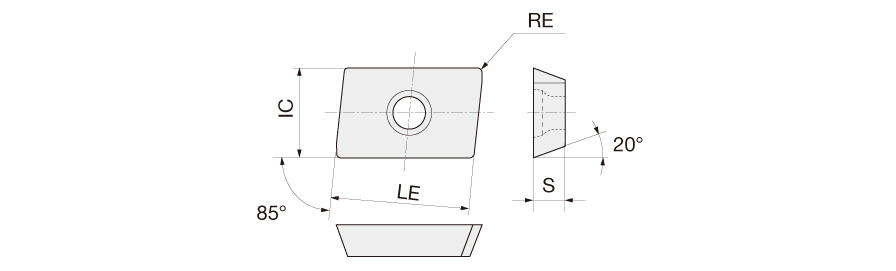

| Corner Radius (RE) | 0.0157″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.551″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.469″ | Cutting Edge Effective Length (LE) | 0.63″ |
| Inscribed Circle Diameter (IC) | 0.469″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.156″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | M-calss insert for shoulder milling | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.172
