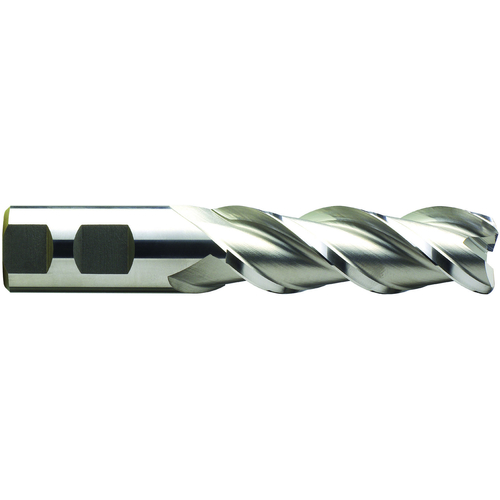

Corner Radius End Mill; 1-1/2″ Dia. × 4″ LOC × 1-1/4″ Shank Dia. × 6-1/2″ OAL ; 3 FL ; T15 ; Bright ; Series EK193
| Cutting Diameter (DC) | 1-1/2″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 4″ | Corner Radius (RE) | 0.12″ |
| Overall Length (OAL) | 6-1/2″ | Tool Type | Corner Radius 42 Degree Medium Finishing |
| Cutting Edge Material | HSS-T15 | Length Group | Long |
| Coating | Uncoated | Decimal Equivalent | 1.5″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Series/List # | EK193 |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
7.5
Package Width
2
Package Height
2
Package Weight
2.061
