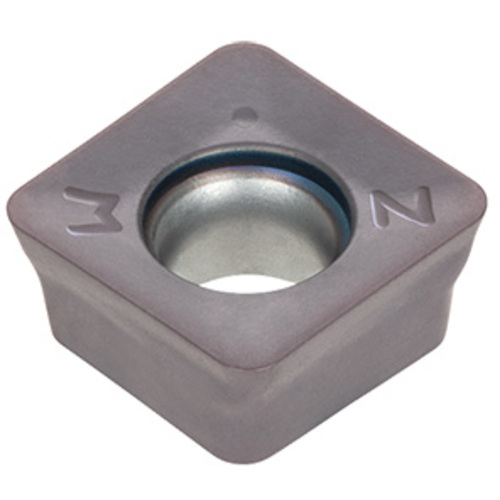

SWMT0904ZER-MM AH120
Milling Insert; SWMT0904ZER-MM AH120_ AH120 × 0.339″ Width × 0.157″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.059 in/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0393″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Insert Width (W1) | 0.339″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.339″ | Cutting Edge Effective Length (LE) | 0.339″ |
| Insert Thickness (S) | 0.157″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 |
Product Features
| Family Description | Single-sided square insert with MM chipbreaker for general purpose use | Country of Origin | Japan |
Shipping Info
Package Weight
0.082
