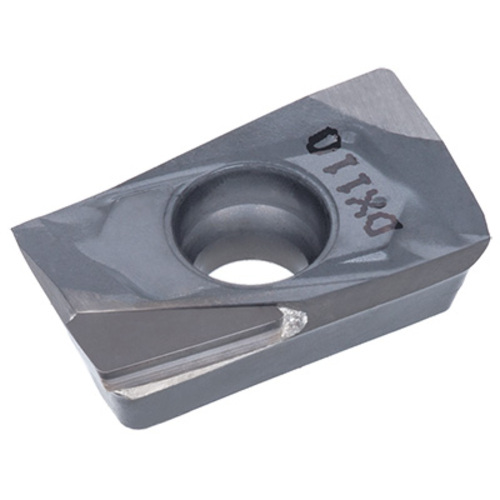

ASGW11T304PDFR-D DX110
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | | Shoulder Milling | | Grade | DX110 |

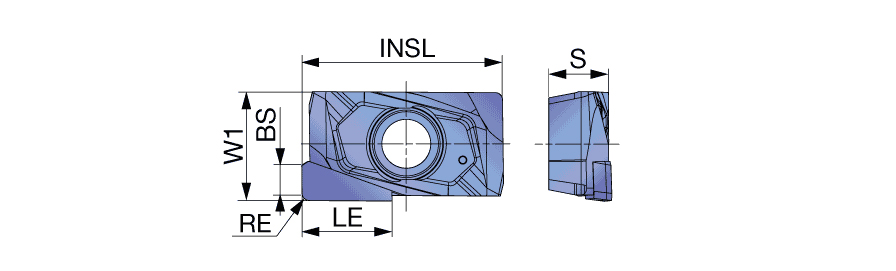

| Insert Length (INSL) | 0.465″ | Cutting Edge Material | PCD |
| Corner Radius (RE) | 0.0157″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.177″ | Number of Cutting Edges | 1 |
| Insert Width (W1) | 0.252″ | Cutting Edge Effective Length (LE) | 0.205″ |
| Insert Thickness (S) | 0.146″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.063″ | Body Material | Carbide |
Product Features
| Family Description | Single-sided PCD insert with 1 edge for non-ferrous metal | Country of Origin | Japan |
| Remarks | PCD inserts listed above are not designed to be re ground and re used. |
Shipping Info
Package Weight
0
