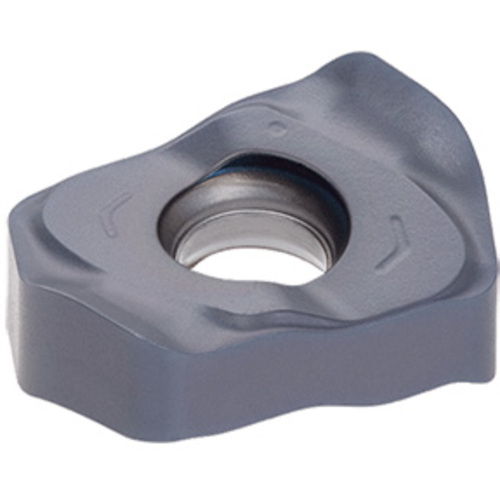

LNMX0405ZER-HL AH8015
Milling Insert; LNMX0405ZER-HL AH8015_ AH8015 × 0.323″ Width × 0.197″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH8015 |
| Application | | High Feed Milling | | Maximum Feed per Tooth (fz(max)) | 0.0512 in/tooth |

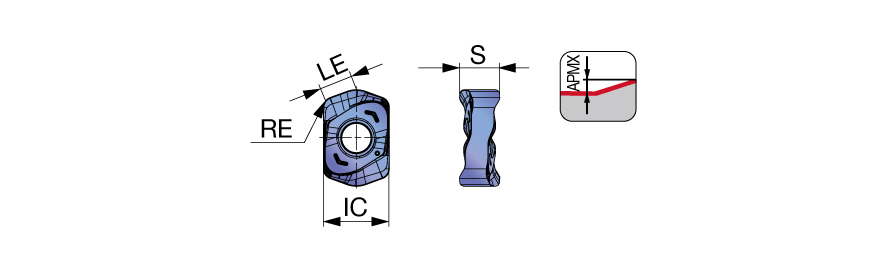

| Insert Length (INSL) | 0.472″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0512″ | Minimum Feed per Tooth (fz(min)) | 0.0118 in/tooth |
| Depth of Cut Maximum (APMX) | 0.051″ | Number of Cutting Edges | 4 |
| Insert Width (W1) | 0.323″ | Cutting Edge Effective Length (LE) | 0.172″ |
| Inscribed Circle Diameter (IC) | 0.323″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.197″ | Body Material | Carbide |
| Coating | AlTiN |
Product Features
| Family Description | Double-sided insert with 4 edges for high-feed milling. Low cutting force type. | Country of Origin | JAPAN |
