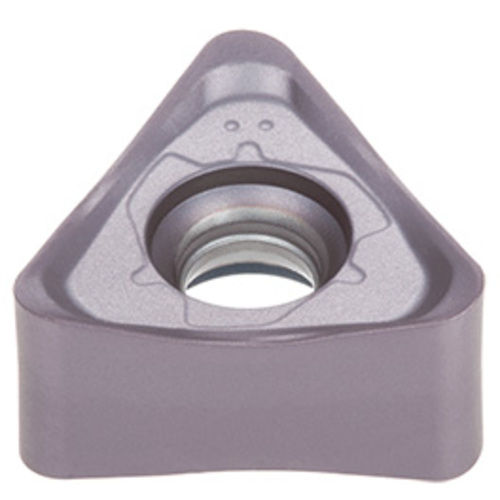

TNMU1207R20PER-MJ AH3135
Milling Insert; TNMU1207R20PER-MJ AH3135_ AH3135 × 0.265″ Thickness ; Carbide ; TiAlN

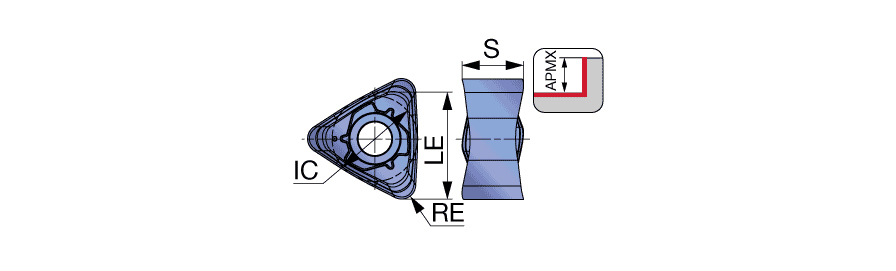

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0118 in/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0787″ | Minimum Feed per Tooth (fz(min)) | 0.0031 in/tooth |
| Depth of Cut Maximum (APMX) | 0.433″ | Number of Cutting Edges | 6 |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Edge Effective Length (LE) | 0.472″ |
| Insert Thickness (S) | 0.265″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH3135 |
Product Features
| Family Description | M-class, Double-sided triangle insert with 6 edges and MJ chipbreaker | Country of Origin | JAPAN |
