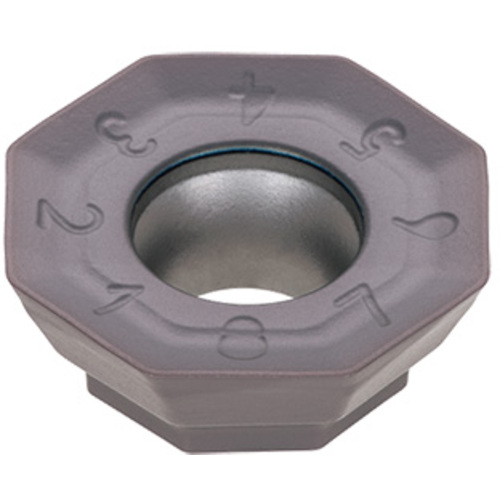

OWMT05T3AFER-MM AH120
Milling Insert; OWMT05T3AFER-MM AH120 AH120 × 0.177″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0138 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

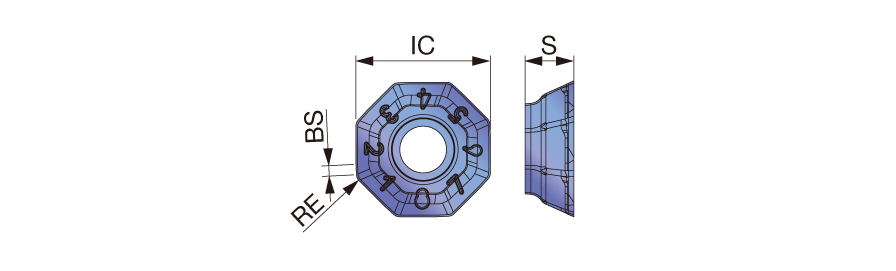

| Corner Radius (RE) | 0.0314″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.118″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.489″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.177″ | Cutting Edge Effective Length (LE) | 0.201″ |
| Wiper Edge Length (BS) | 0.039″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 |
Product Features
| Family Description | Octagonal milling insert with positive rake and MM chipbreaker, M class, 8 corners available | Country of Origin | Japan |
Shipping Info
Package Weight
0.999
