LNMU0303ZER-ML AH3225
Milling Insert; LNMU0303ZER-ML AH3225 AH3225 × 0.236″ Width × 0.169″ Thickness
| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.0276 in/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

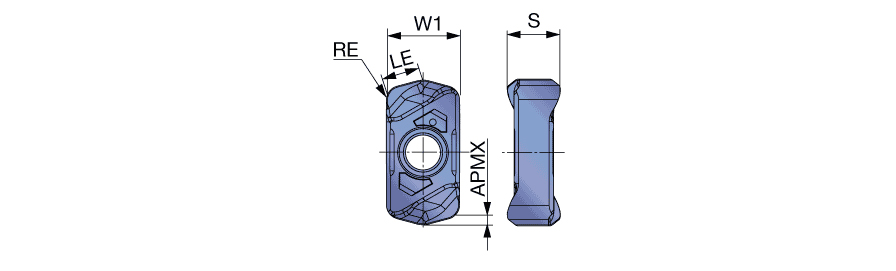

| Corner Radius (RE) | 0.0472″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.039″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Insert Width (W1) | 0.236″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.236″ | Cutting Edge Effective Length (LE) | 0.126″ |
| Insert Thickness (S) | 0.169″ | Measurement Type | Inch |
| Coating | TiAlSiCrN | Body Material | Carbide |
| Grade | AH3225 |
Product Features
| Family Description | Double sided insert with 4 edges and ML chipbreaker | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
