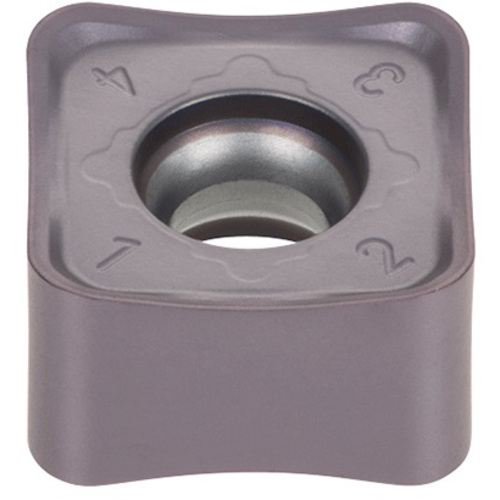

SNMU120612EN-MM AH3135
Milling Insert; SNMU120612EN-MM AH3135 AH3135 × 0.285″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.012 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

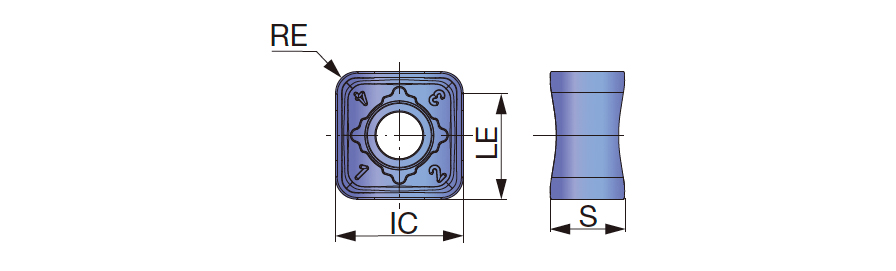

| Corner Radius (RE) | 0.0472″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.374″ | Minimum Feed per Tooth (fz(min)) | 0.0008 in/tooth |
| Inscribed Circle Diameter (IC) | 0.472″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.285″ | Cutting Edge Effective Length (LE) | 0.425″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH3135 | Body Material | Carbide |
Product Features
| Family Description | Double sided square inserts with 8 cutting edges | Country of Origin | Japan |
Shipping Info
Package Weight
0.35
