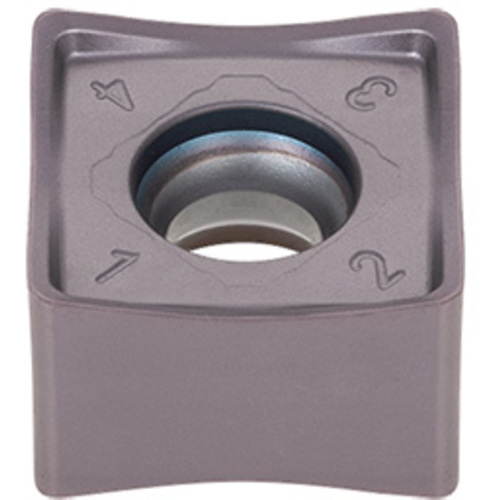

SNMU120608HNEN-MM T1215
Milling Insert; SNMU120608HNEN-MM T1215 T1215 × 0.295″ Thickness ; Carbide ; TiCN+Al2O3
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.012 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

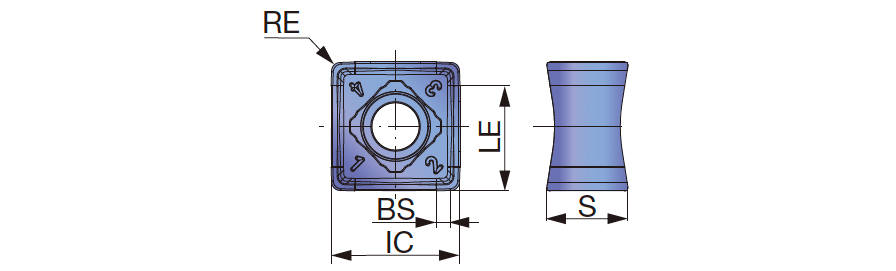

| Corner Radius (RE) | 0.0314″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.374″ | Minimum Feed per Tooth (fz(min)) | 0.0024 in/tooth |
| Inscribed Circle Diameter (IC) | 0.472″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.295″ | Cutting Edge Effective Length (LE) | 0.386″ |
| Wiper Edge Length (BS) | 0.055″ | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | T1215 |
Product Features
| Family Description | Double sided square inserts with 8 cutting edges and built-in wiper | Country of Origin | Japan |
Shipping Info
Package Weight
0.35
