| Applicable Material | | Steel | Stainless Steel | | Grade | AH3225 |
| Application | | Profile Milling | | Maximum Feed per Tooth (fz(max)) | 0.0315 in/tooth |

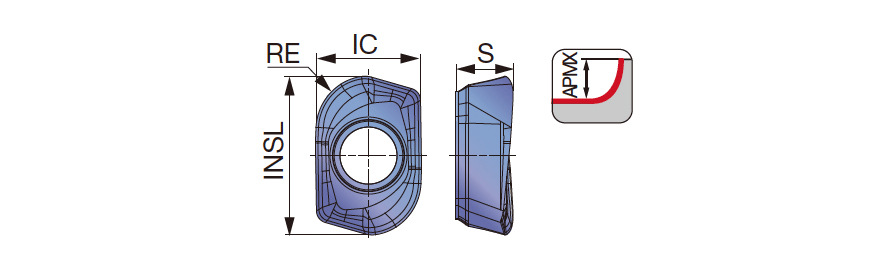

| Insert Length (INSL) | 0.252″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0787″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.079″ | Minimum Feed per Tooth (fz(min)) | 0.008 in/tooth |
| Inscribed Circle Diameter (IC) | 0.169″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.091″ | Measurement Type | Inch |
| Coating | TiAlSiCrN | Body Material | Carbide |
Product Features

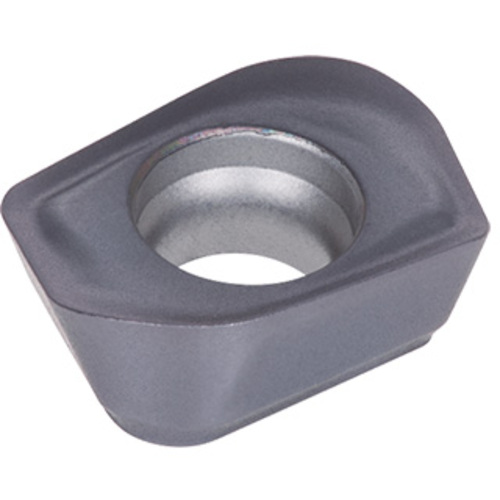

| Family Description | Single-sided inserts with 2 edges. R2 inserts. Full profiling insert design ideal for semi-roughing and semi-finishing of die and mold parts. | Country of Origin | Japan |
Shipping Info
Package Weight
0.35
