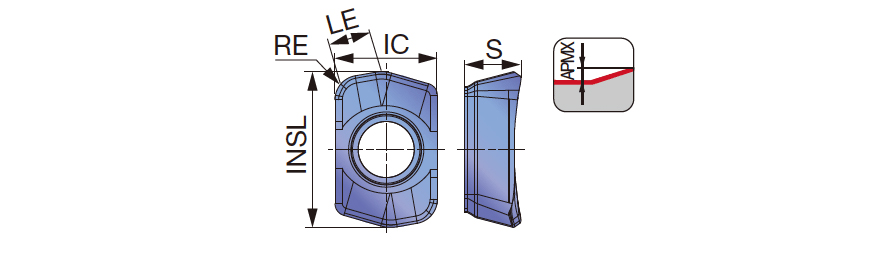

| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.0315 in/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.252″ | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0393″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Depth of Cut Maximum (APMX) | 0.02″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 0.165″ | Cutting Edge Effective Length (LE) | 0.067″ |
| Insert Thickness (S) | 0.091″ | Measurement Type | Inch |
| Coating | TiAlSiCrN | Body Material | Carbide |
| Grade | AH3225 |
Product Features
| Family Description | Single-sided inserts with 2 edges. High feed inserts. First choice insert for various applications including slotting, pocketing, or for long reach areas. | Country of Origin | Japan |
Shipping Info
Package Weight
0.35
