| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DX110 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0078 in/tooth |

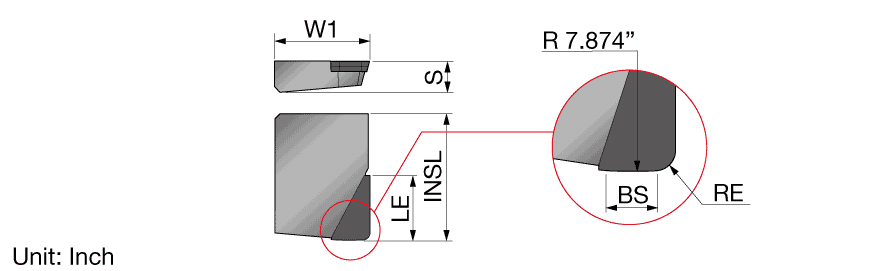

| Insert Length (INSL) | 1/2″ | Cutting Edge Material | PCD |
| Corner Radius (RE) | 0.0158″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.177″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Insert Width (W1) | 0.374″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.122″ | Cutting Edge Effective Length (LE) | 0.256″ |
| Wiper Edge Length (BS) | 0.11″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features

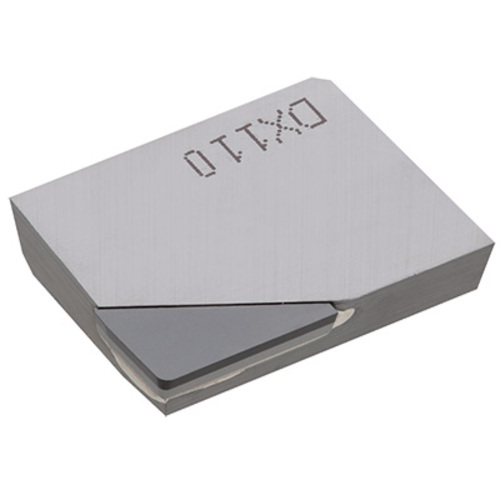

| Family Description | PCD rounded corner insert with wiper | Country of Origin | JAPAN |
