| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |

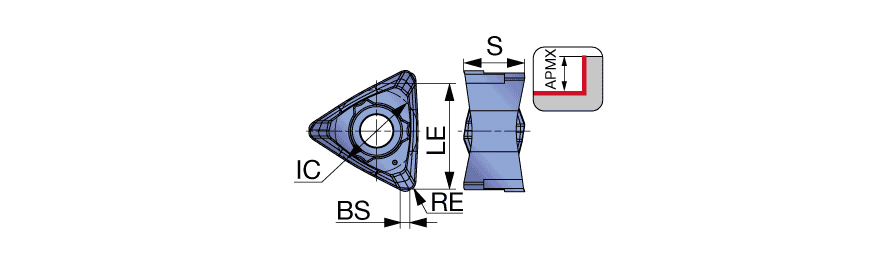

| Corner Radius (RE) | 0.8 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 6.5 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Inscribed Circle Diameter (IC) | 5.7 mm | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 4.1 mm | Cutting Edge Effective Length (LE) | 6.5 mm |
| Wiper Edge Length (BS) | 0.6 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | M-class, double-sided triangle insert with 6 edges and MJ chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.08
