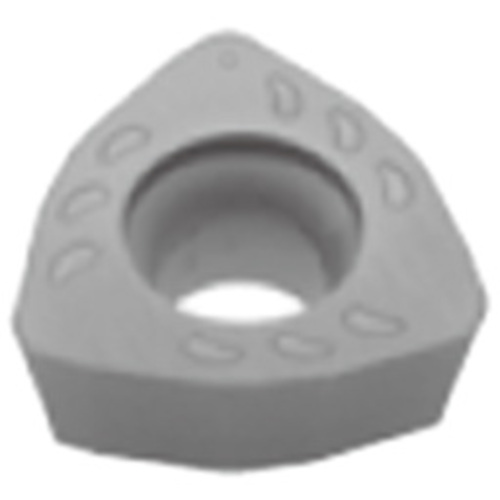

WPMW05H315ZPR AH3135
Milling Insert; WPMW05H315ZPR AH3135 INST AH3135 × 0.138″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH3135 |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

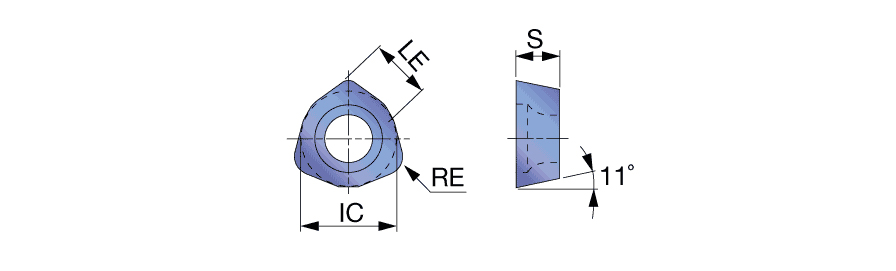

| Corner Radius (RE) | 0.059″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 0.313″ | Cutting Edge Effective Length (LE) | 0.197″ |
| Insert Thickness (S) | 0.138″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Flat-top trigon insert for MillFeed cutters in small diameter | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
