TCMT160620PDER-NMJ T3225
Milling Insert; TCMT160620PDER-NMJ T3225 T3225 × 0.228″ Thickness
| Applicable Material | | Steel | Stainless Steel | | Grade | T3225 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0087 in/tooth |

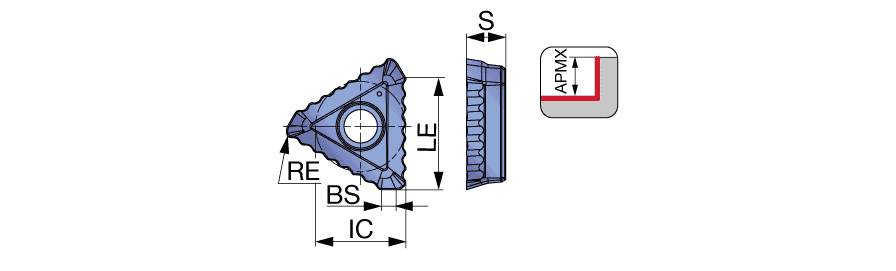

| Corner Radius (RE) | 0.0787″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.63″ | Minimum Feed per Tooth (fz(min)) | 0.0031 in/tooth |
| Inscribed Circle Diameter (IC) | 0.524″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.228″ | Cutting Edge Effective Length (LE) | 0.63″ |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features
| Family Description | Single-sided triangle insert with serrated edges and NMJ chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.35
