| Applicable Material | | Steel | Stainless Steel | | Grade | T3225 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0087 in/tooth |

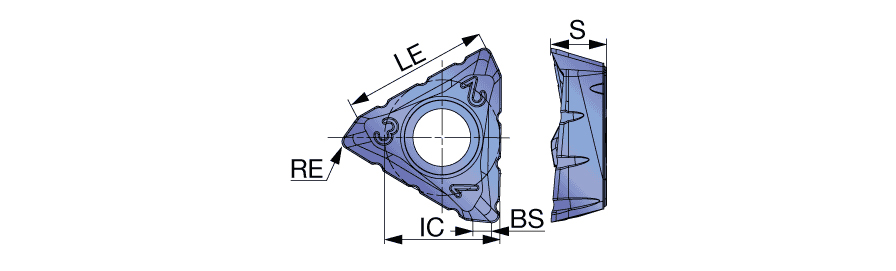

| Corner Radius (RE) | 0.0314″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.591″ | Minimum Feed per Tooth (fz(min)) | 0.003 in/tooth |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.236″ | Cutting Edge Effective Length (LE) | 0.618″ |
| Wiper Edge Length (BS) | 0.075″ | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features
| Family Description | Inserts with NMJ chipbreaker. Suitable for machining with large width of cut due to split chips. | Country of Origin | JAPAN |
| Remarks | For setting NMJ inserts, click on "Product report". |
