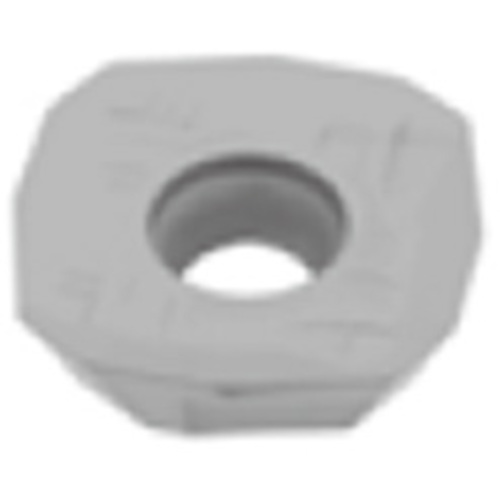

SWMT13T3AFPR-HJ T3225
Milling Insert; SWMT13T3AFPR-HJ T3225 T3225 × 0.579″ Width × 0.157″ Thickness

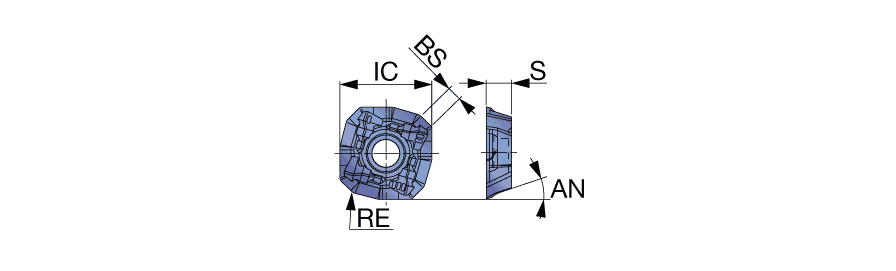

| Applicable Material | | Steel | Stainless Steel | | Grade | T3225 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0236 in/tooth |
| Corner Radius (RE) | 0.059″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.079″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.579″ | Minimum Feed per Tooth (fz(min)) | 0.0079 in/tooth |
| Inscribed Circle Diameter (IC) | 0.579″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.157″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.091″ | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN |
Product Features
| Family Description | Applicable for super highfeed milling. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
