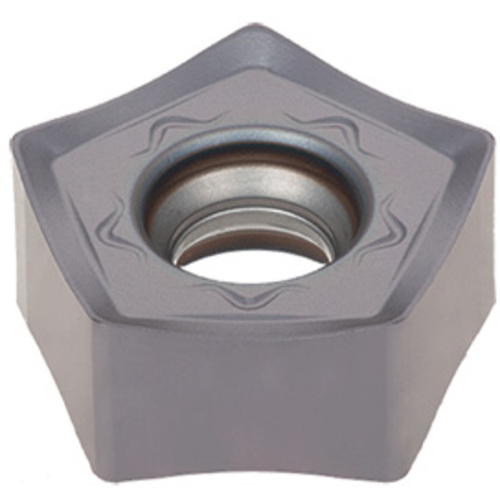

PNCU0905GNEN-MJ AH120
Milling Insert; PNCU0905GNEN-MJ AH120 INS AH120 × 0.236″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0157 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

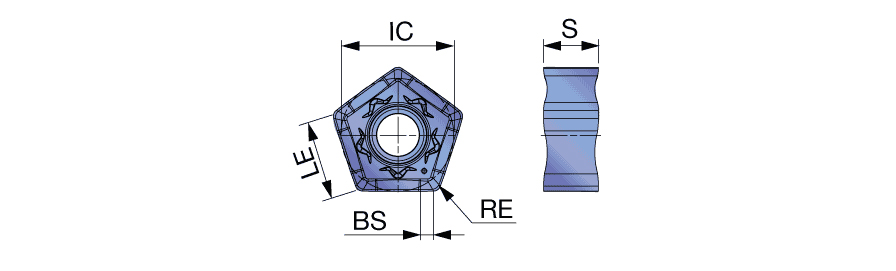

| Corner Radius (RE) | 0.0314″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.252″ | Minimum Feed per Tooth (fz(min)) | 0.004 in/tooth |
| Inscribed Circle Diameter (IC) | 0.48″ | Number of Cutting Edges | 10 |
| Insert Thickness (S) | 0.236″ | Cutting Edge Effective Length (LE) | 0.35″ |
| Wiper Edge Length (BS) | 0.055″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 |
Product Features
| Family Description | For low cutting force and low thrust force, C class, Neutral geometry, Double sided pentagonal insert. Can be used on Right and Left hand cutters. | Country of Origin | Japan |
Shipping Info
Package Weight
0.019
